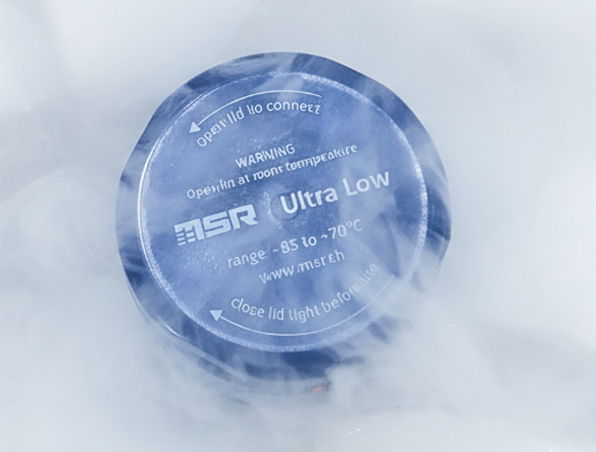

MSR85: Reusable Ultra-Low Temperature Data Logger for Dry Ice Monitoring, Down to -85 °C
The MSR85 data logger is engineered for precise temperature monitoring in environments where products are transported or stored using dry ice. This robust solution is ideal for the safe transport of temperature-sensitive goods, including pharmaceuticals, vaccines, biological samples, tissues, and enzymes that require stringent cold chain conditions down to –85 °C.
Key Features: Reusable, Reliable, and Secure Reporting
Designed with sustainability in mind, the MSR85 is equipped with a replaceable battery and an extended operating life, ensuring it remains a cost-effective solution for cold chain monitoring. The setup process is intuitive; users can easily configure essential parameters such as alarm thresholds, measurement intervals, and time zones using the included Configuration Tool. Recording can be initiated effortlessly with the press of a single button.
Upon completion of transport, recipients can quickly ascertain whether any temperature thresholds were breached via the LED indicator. Once the recording session is concluded by pressing the button, the logger can be connected to a PC via USB. The MSR85 then automatically generates tamper-proof PDF and CSV reports containing all pertinent data for comprehensive review and compliance documentation.
6 LED indicators: 2 LEDs for recording/stop status; 2 LEDs for high/low alarm status; and 2 LEDs for battery status (full, ¾, ½ or less).
Push buttons:
Two secured push buttons to start and stop recording.
Housing:
Robust, temperature-resistant housing (IP67) made of polycarbonate/ABS, food grade.
Dimensions:
Ø 50 mm x H 45 mm, approx. 43 g
Battery type:
Replaceable 3.6 V ½ AA battery. Recommendation: Type EVE ER14250
Battery life:
Approx. 100 days at a logging interval of 10 minutes – depending on the sampling rate as well as operating and storage conditions.
PC interface:
USB Type-C
Data report:
Automatic creation of Adobe PDF and CSV reports with graphs, measurement tables, and summaries of statistical data (tamper-proof).
Configuration tool:
The Configuration Tool is provided via a link.
QA certification:
Calibration certificate – traceable nationally and internationally. Each MSR85 data logger is factory-calibrated at five temperature points. A copy of the certificate is additionally stored on the data logger.
System requirements:
Windows 7 or higher; Adobe Reader 9.0 or higher
Transport regulations:
Safe for air, land, and sea transport; no marking required according to IATA Dangerous Goods Regulations (DGR), 58th Edition 2017; UN3019, Packing Instruction 970 Section II – exempted lithium metal cells and batteries. U.S. Department of Transportation, Lithium Battery Hazardous Material Regulations; 49 CFR Parts 171–180; 2016 International Maritime Dangerous Goods (IMDG), Packing Instruction 903
Product features dry ice data logger MSR85
Reusable PDF data logger for temperature monitoring of cold chains and transports in the dry ice range
Housing-mounted PT1000 temperature sensor -85 °C… 70 °C
Storage capacity of up to 32 000 measured values
Bright LEDs for easy alarm identification
Replaceable 3.6 V ½ AA battery
Integrated USB-C port – simple PC connection
Automatic PDF & CSV reports with measured values and graphs
Rugged, temperature-resistant housing (IP67)
Configuration Tool provided via an online link
Incl. 5-point calibration certificate
Easy handling, reliable evaluation
Measurement data cannot be manipulated
EN 12830 certified for food and pharmaceutical logistics
Complies with FDA 21 CFR Part 11 requirements
Software
Our PC software is scanned for viruses with Microsoft Defender.
