TC-08 Thermocouple to PC Data Logger

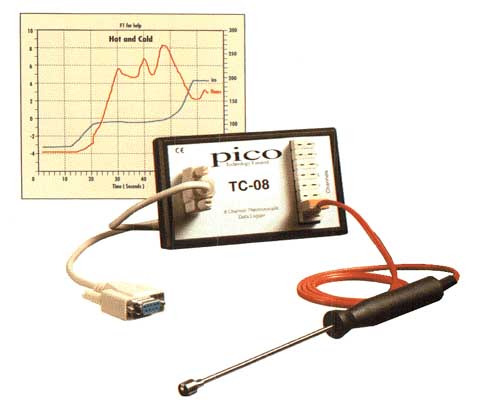

The TC-08 is an 8 channel themocouple to PC interface, it can measure the full range of temperatures from -270°C to +1800°C and works with all popular types (B,E,J,K,N,R,S,T). There is also a 60mV range which can be used for other types of sensor. The TC-08 is very easy to use - just plug into the serial (or USB via the adapter) port of your computer, connect a thermocouple and you are ready to measure temperatures. See also our advice on choosing and using thermocouples Resolution and Thermocouple Types
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Thermocouple type | Overall range | 0.1°C resolution | 0.025°C resolution |
| B | 100-1800 | 1030-1800 | - |
| E | -270-790 | -240-790 | -140-790 |
| J | -210-1050 | -210-1050 | -120-1050 |
| K | 270-1300 | -220-1300 | -20-1150 |
| N | -260-1300 | -210-1300 | 340-1260 |
| R | -50-1760 | -333-1760 | - |
| S | -50-1760 | 250-1760 | - |
| T | -270-400 | -230-400 | - |
| Specification |
|
|
| No of channels | 8 | |
| Accuracy | The sum of ±0.3% and 0.5°C | |
| Overload Protection | ±10V | |
| Conversion time | 200ms for cold junction
compensation + 200ms per active channel |
|
| Input connectors | Miniature thermocouple | |
| Max common mode voltage | ±5V | |
| Output connector | D9 female to serial port (Cable and D25 adaptor included) |
|
| Dimensions | 85 x 145 x 25mm | |
| Supplied software |

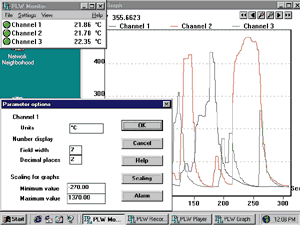

PicoLog for Windows (3.x,
95/98/ME, NT/2000) Drivers & examples C, pascal, Delphi, Visual Basic, HP VEE and LabVIEW. A macro is also provided to collect data directly into an Excel spreadsheet |
|
Interworld offers standard length type K thermocouple probes: Other probes are available from specialist temperature measurement companies (e.g.
Omega in the US) and electronics catalogues.Upon request Interworld can also supply type J, K and T thermocouples up to 10m in length. These are exposed wire thermocouples, with a choice of a PTFE or fibreglass cable. Please contact Interworld for more information.
| Probe Type | Material | Dimensions | Tip Temperature |
|---|---|---|---|
| Exposed junction wire | PTFE | Ø1.5 x 1000mm | -75 to 250 °C |
| Exposed junction wire | Fibreglass | Ø1.5 x 1000mm | -60 to 250 °C |
| Air | Steel | Ø4.5 x 1300mm | -50 to 250 °C |
| Penetration | Steel | Ø3.3 x 1300mm | -50 to 250 °C |
| Contact | Steel | Ø85 x 1300mm | -10 to 250 °C |
|
|
||
