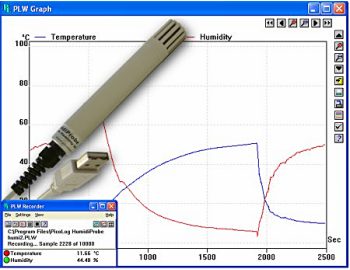

position the HumidiProbe near the source you want to measure, plug the cable into the USB
port on your PC, and you're ready to measure humidity and temperature.
Monitoring temperature and humidity is very important:
temperature and humidity play an
import part in health, comfort and productivity. Extreme
temperatures can also cause
electronic equipment to age faster and mechanical equipment
to breakdown. If humidity is
too high it can lead to corrosion of equipment, mould growth
— even printers jamming; if
the humidity is too low it can lead to problems with static
electricity and dehydration
problems with everything from wine making to wood storage.
- Records temperature and relative humidity
- Measures 0 to 100% RH (non-condensing)
- Measures 0 to 70 °C
- Small form factor design
- Connects to a PC or laptop via a USB port
- No power supply required
Versatile and expandable
The HumidiProbe's compact,
all-in-one design allows it to be used in various locations
and in
a wide range of applications. Up to 4 HumidiProbes can be
connected to one PC allowing you
to accurately monitor the temperature and humidity in
multiple locations at once, and at a
low cost.
Easy to use software
The easy to use
PicoLog data acquisition
software is supplied with the HumidiProbe —
this powerful, yet flexible, data acquisition software
allows you to collect, manipulate,
analyse, and display and export data. Software alarms can be
configured for both temperature
and humidity so as to provide a warning when measurements go
out of a specified range.
Updates to PicoLog can be downloaded for free from the Pico
website.
An accurate and cost effective solution
If you need to measure, and
record, temperature and humidity the HumidiProbe provides
you
with a complete solution that is compact, simple to use,
accurate and cost effective.
The
RH-02 Temperature and Humidity
Data Logger is available for users without a USB
compatible PC.
| Specification | Temperature | Humidity |
|---|---|---|
| Range | 0 to 70 °C | 0 to 100% RH |
| Accuracy | ±0.5 °C | ±2% RH |
| Resolution | 0.01 °C | 0.03% RH |
| Conversion time | 2 sec | |
| Response time | 5 to 30 seconds | 4 seconds |
| PC connection | USB 1.1 (USB 2.0 compatible) | |
| Power supply | From USB port | |
| Dimensions |
45 x 72 x 28 mm
(1.77 x 2.83 x 1.10 in) Cable length 4.5 metres (14 ft 9 in) |
|
| Supplied software |
PicoLog data
acquisition software for Windows. Drivers and examples for C, Delphi, Visual Basic, Agilent VEE and LabVIEW. A macro is also provided to collect data directly into an Excel spreadsheet. |
|
| PC requirements |
Processor: Pentium
class processor or equivalent Memory: 32 MB minimum Disk space: 10 MB minimum Operating system: Microsoft Windows 98SE, ME, 2000 or XP Ports: USB 1.1 or 2.0 compliant port |
|
| Part Number |
PP299 - RH-02-USB |
|
