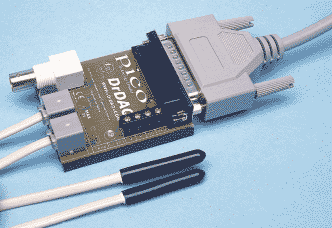

DrDAQ data logger
sensors and accessories


    Your ALT-Text here


US Prices
CDN Prices

Privacy and Security



As well as the built in sensors, DrDAQ has sockets for optional external sensors. When a sensor is plugged in to the external sensor sockets, the software detects it and automatically scales readings. For example if a temperature sensor is plugged in readings are displayed in °C or if a humidity sensor is plugged in, readings are displayed in % RH.

External sensors are optional extras so can be purchased at any time. It is however cheaper to purchase sensors at the same time as a DrDAQ. See the pricing link listed above for more information.

Details of the external sensor sockets are provided with DrDAQ. This allows users (and third party manufacturers) to develop their own sensors.


DrDAQ Temperature Sensors

temperature sensors

A high accuracy general purpose temperature sensor with a 2 metre lead. Suitable for air, surface or liquid measurements.

Our science experiment on the freezing of pure and salt water shows the temperature sensors in use.
Range -10 to 105°C
Resolution(at 25°C) 0.1°C
Accuracy(at 25°C) 0.3°C

DrDAQ pH electrode

pH sensor

pH is measured using a standard electrode with a BNC connector. Pico supplies a robust epoxy bodied pH electrode ideal for educational use. It covers the full 0 to 14pH range. The electrode comes complete with a small bottle of storage solution to help prevent it drying out.

Our science experiment measuring the pH of drinks shows the electrode in use.
Size 12 x 120mm
Operating temperature 0 to 60°C
Resolution 0.02pH

DrDAQ Oxygen Sensor

oxygen sensor

Oxygen in air is measured using a galvanic cell sensor which connects to the external sensor sockets using the supplied three metre lead. Simply plug in the sensor and you are ready to measure.

Unlike previously available oxygen sensors, the DD103 Oxygen sensor can measure the full 0 to 100% range. This makes it ideal for many chemistry, biology and physics experiments.

Our science experiment "burning oxygen" shows the electrode in use.
Sensor type Galvanic Cell (lead-oxygen with weak acid electrolyte)
Input range 0 to 100% oxygen
Accuracy ±3% (Uncalibrated)
±1% (Calibrated at constant temperature / pressure)



DrDAQ Humidity sensor

humidity sensor

This sensor is designed for the cost effective measurement of relative humidity. When plugged into one of the external sensor sockets on DrDAQ (using the supplied 3m cable) readings can be displayed in %RH. The sensor has a response time of 60 seconds and can operate over a 0 to 60 °C temperature range.

Our science experiment on transpiration shows the sensor being used to measure the humidity change caused by a plant.

Range 20% to 90% RH (Non condensing)
Accuracy ±10%
Resolution 0.2% RH
Size 72 x 45 x 28mm



DrDAQ Reed Switch

timing gate

The reed switch sensor can be used to detect the presence of a magnetic field such as from a bar magnet or an electromagnet. Alternatively, a simple external switch can be wired to the internal screw terminals. It has a fast response time of 2ms so can be used as an alternative to a light gate for timing applications. Other used include monitoring the amount of time a door is left open or a machine running.

Our science experiment scalextric subaru challenge shows how the sensor can be used to measure the speed of a model car.

Griffin Rate Meter

Griffin rate meter

The Griffin rate meter provides an indication of the level of radioactivity given off from a source. Our Application note explains how to configure the pH input of DrDAQ for use with the Griffin rate meter.

The rate meter can be obtained direct from Griffin and George, details on their Web site.

DrDAQ Sensor Adaptor

This compact unit will prove invaluable to anyone developing their own sensors for the DrDAQ. A short length of cable is terminated with an FCC 68 4/4 data plug, which is compatible with the external sensor sockets on the DrDAQ.

The four lines are clearly labelled and brought out to four 4mm sockets on the adaptor unit so that external circuitry can be easily connected and developed.
Part Number is DD013

Sensor cable extension

3 metre sensor extension cables are available to enable sensors to be used further from the DrDAQ data logger.


Data Logging in Practise by Roger frost

Accessories

Data logging book

Data Logging in Practice by Roger Frost

This 142 page book contains a huge number of experiment ideas for teachers. It was recently reviewed in the Association for Science Education (ASE) journal:

"Teachers cannot always define professional work, but they can always recognise it and this is a prime example. For a start, this book deals with the real world of schools, and invites the teacher, as a fellow professional, to analyse what is available, and to bounce ideas about. The greatest value of this book is in its first 30 odd pages. There are indexes and tables to relate the contents to the context of teachers. There are clever and helpful organisational suggestions. There is advice on types of sensors and choosing them for experiments. The experimental details are not concerned with what kind of hardware is used, but much more with the treatment of results. Relevant web sites are noted. Strongly recommended for all schools who intend to use this technique."
