ADC 212 and ADC-216

12 or 16 bit resolution
Supplied with oscilloscope and
      data logging software
Large buffer memory
Easy to use and install
up to 100 Mega Samples/Sec.

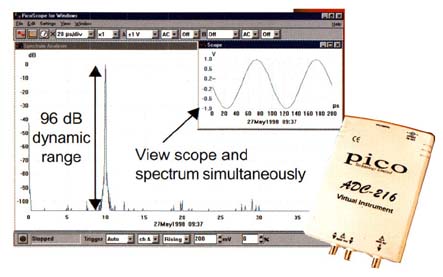

When used as a spectrum analyzer, the ADC-212 has a useable dynamic range of over 80 dB, whilst the ADC-216 offers over 90 dB.

With an ADC-212 or 216 and the supplied PicoScope software, your PC becomes a high precision test instrument (oscilloscope, spectrum analyzer and multimeter). Additionally, when used with the supplied PicoLog software, your PC becomes an advanced data logger and chart recorder. For users wishing to develop their own software, there are software drivers for DOS, Windows 3.1, 95/98 and NT and examples for Labview, Excel Visual Basic, Delphi and C.

With its 32k buffer, the ADC-212/216 can collect large quantities of accurate data at high speed. The large memory means that oversampling can be used to reduce the effects of alaising.

Three models of the ADC-212 exist with sampling rates of 20 Mhz, 50 Mhz and 100 Mhz. (Models ADC-212, ADC-212/50 and ADC-212/100)

Scope timebase

Spectrum ranges
ADC-212
ADC-216

Max sample rate
ADC-212

ADC-216

Analog bandwidth
ADC-212
ADC-216
Buffer size
Voltage ranges

Resolution
ADC-212
ADC-216

Channels


Accuracy
PC connection
Power Supply
EMC

Warranty
