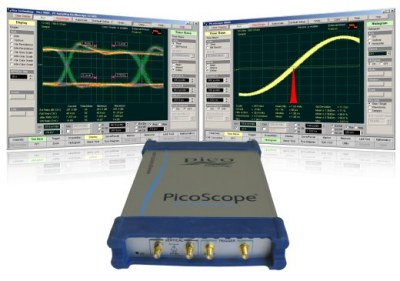

If you need to measure high-speed electrical signals, the dual-channel 12 GHz PicoScope 9201 sampling oscilloscope delivers the ultimate price/performance.
| At under
$12,000 US – less than half the price of comparable sampling
oscilloscopes – the PicoScope 9201 has all the features and
performance you need at a price you can afford. Unlike other
manufacturers, all software functionality is included in the
cost of the oscilloscope, and software updates are provided
free of charge. Designed specifically for the complex task of analyzing high-speed electrical signals, the PicoScope 9201 is ideal for many advanced applications including: signal analysis, timing analysis, testing and design of high-speed digital communication systems, network analysis, semiconductor testing, and research and development.
|
|
Designed specifically for the complex task of analyzing high-speed electrical signals, the PicoScope 9201 is ideal for many advanced applications including: signal analysis, timing analysis, testing and design of high-speed digital communication systems, network analysis, semiconductor testing, and research and development.
Main specifications of the PicoScope 9201 include:
- 12 GHz bandwidth on 2 channels
- Dual timebase from 10 ps/div
- Up to 10 GHz trigger bandwidth
- 5 TS/s equivalent time sample rate
- High resolution cursor and automatic waveform measurements with statistics
- Waveform processing including FFT
- Time and voltage histograms
- Eye-diagram measurements for NRZ and RZ
- Automated mask test
- USB 2.0 or LAN (optional)
- Familiar Windows graphical user interface
- Lightweight and energy efficient design
Typical applications include:
- Electrical standards compliance testing
- Semiconductor characterization
- Telecom service and manufacturing
- Timing analysis
- Digital system design and characterization
- Electronic mask drawing and display
- Automatic pass/fail limit testing
- High speed serial bus pulse response
