NEW
Coil On Plug Sensor

"Never before has such a powerful package been available in this price range and we expect the kit to turn the market for automotive diagnostics on its head."
- Alan Tong, Pico's Technical Director.

Click here for Diagnostic kits matrix table
Basic Kit (PP205)  (Obsolete Replaced by PP280)


600A Current Clamp
ADC-212/3 PC based oscilloscope
600A AC/DC current clamp
20:1 attenuator
Multimeter probes
Small Croc clips
Dolphin clips
 Insulation piercing probes
TA000 test lead (2 off)
Secondary ignition picku
2-pin break out lead
Automotive software CD





 Advanced Kit Also Includes These Items
(PP206):
(Replaced by PP276 - 4 Channel Unit)



60A DC current clamp
Acupuncture probes
Additional secondary ignition pickup
Cigar lighter power lead








Put Links and images as needed here

The Pico Automotive Diagnostic Kit can be used to measure and test virtually all of the electrical and electronic components and circuits in the modern vehicle including:
  • Ignition (primary & secondary)
  • Injectors & fuel pumps
  • Starter & charging circuits
  • ABS sensors. Crank & cam sensors
  • Lambda, Airflow, knock & MAP sensors
  • Glow plugs / timer relays
  • Relative compression tests



The kit is ideal for a wide range of users including, OEMs, franchised and non franchised garages, breakdown / roadside recovery organisations and mobile tuning/repair services. This powerful and flexible kit has been designed for ease of use so is equally suitable for both novice and expert users.

The Diagnostics Kit is based around the successful ADC-212/3 PC-based oscilloscope and includes a powerful software and information package. The kit turns your laptop or desktop PC into a powerful automotive diagnostic tool for fault finding the increasing number of sensors, actuators and electronic circuits found on todays vehicles.

ADC-212/3 PC-based oscilloscope

The ADC-212/3 is Your ALT-Text here an easy to use two channel PC based oscilloscope. With all of the accessories the ADC-212/3 can be used to measure all of the voltage and current waveforms from the numerous actuators, sensors and electronic circuits found on any car, lorry or motorbike.

More information...

Return to top of page

MI077 600A AC/DC Current Clamp Return to top of page

The MI077 is a 600A current clamp, ideal for use with the ADC-212 for displaying starter current waveforms, charging currents and for performing relative compression tests.

Your ALT-Text here



More information...

Return to top of page

TA009 60A DC Current Clamp

The TA009 is a 10mA to 60A current clamp, ideal for use with the ADC-212 for measuring the current drawn by smaller devices, such as fuel injectors & fuel pumps.

60A current clamp

More information...

Return to top of page

TA010 20:1 attenuator

The TA010 has been designed to safely measure high voltage inductive signals such as fuel injector and primary ignition waveforms.

Your ALT-Text here

More information...

Return to top of page

Acupuncture probes

First and foremost the TA008 is a back pinning probe. In fact, its the smallest diameter back pinning probe that we know of. This is essential for probing today's small, fragile connector. It is also very sharp, so it slides past connector seals with ease. This product solves most of the

problems associated with traditional back-pinning methods.

Your ALT-Text here

Secondly, the TA008 is a piercing probe. It's small diameter, extra sharp pin makes it ideal for piercing the insulation on small gauge wires where traditional piercing tools might cause damage.

More information...

Return to top of page

Piercing Clips

The TA007 Insulation Piercing Test Clip set is ideally suited for automotive test and diagnosis. The piercing clips allow the user to provide the exact pressure needed to pierce the insulation of a wide range of wire types and sizes. The clips also feature a rotating banana jack that prevents the test lead from twisting and keeps the oscilloscope in the circuit while the wire is pierced, providing immediate confirmation that contact with the conductor has been made

. Your ALT-Text here

More information...

Return to top of page

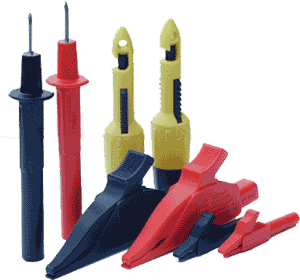

Clips and probes

A wide range of clips, gators and probes are included which plug into the TA000 test lead. Follow the link below for full details and example applications.

  Your ALT-Text here

More information...

Return to top of page

TA000 Automotive Test Lead

The TA000 test lead has been custom made for automotive use with the ADC-212. Its long length (3 meters / approx 10 ft)allows the oscilloscope to be placed on the work bench away from the car being tested / repaired. A wide range of probes, clips and gators can be plugged into the 4mm connectors at the end of the cable.(see below).

The cable is fully screened to reduce noise pickup. To prevent cables getting tangled, the two wires leading to the 4mm connectors are of different lengths, the short negative lead is intended for easy connection to a convient ground point (eg the battery), the much longer positive lead allows easy access around the engine bay. Your ALT-Text here







More information...



Return to top of page

MI074 Secondary Ignition Pickup

The MI074 is a capacitive secondary ignition pickup which simply connects around the insulation of an ignition circuit component such as a plug wire, this avoids the need for direct connection to these high voltage signals.

The MI074 comes with a shielded 2.5m (100 inch) lead. It is suitable for use with conventional ignition systems and most HEI and DIS systems. Our library of Automotive Waveforms contains example waveforms captured using a ADC-212 and the MI074

selecting a current clamp

More information...

Return to top of page

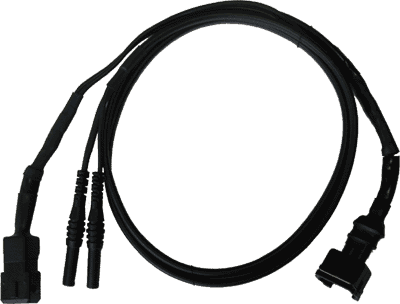

TA012 2-pin Automotive Break out lead

The TA012 break out lead allows for easy connection to many of the sensors and actuators around the engine bay. The break out lead is simply connected into the existing cable loom, the output signal can then be taken from the two 4mm banana plugs into the ADC-212 using the TA000.

As well as measuring voltage signals, the unique design also allows current to be measured with a current clamp. This makes it possible to simultaneously view both the current waveform and voltage waveform of components such as fuel injectors.

Your ALT-Text here

More information...

Return to top of page

MI075 Cigar lighter power lead

In the workshop the ADC-212 is normally powered using the supplied mains adaptor. If however you want to use the ADC-212 on the move with a laptop, this handy lead allows you to power the ADC-212 from the cars cigar lighter socket

The curled lead, when extended is over 3 meters in length so also allows the ADC-212 to be used under the bonnet whilst taking power from the vehicle under test.

Your ALT-Text here

Return to top of page


Your ALT-Text here

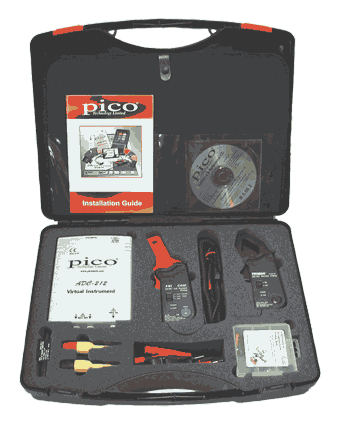

The Basic Automotive kit (PP205) contains the following products:
(Replaced by the PP280 Based on the 3223 Scope)

  1. ADC-212/3 PC based oscilloscope
  2. 600A AC/DC current clamp
  3. 20:1 attenuator
  4. Multimeter probes
  5. Small Croc clips
  6. Dolphin clips
  7. Insulation piercing probes
  8. TA000 test lead (2 off)
  9. Secondary ignition pickup
  10. 2-pin break out lead
  11. Automotive software CD
  12. Instruction manual
  13. Sturdy carry case





The Advanced Automotive kit (PP206) contains all the products found in the basic kit, but also includes the following:

  1. 60A DC current clamp
  2. Acupuncture probes
  3. Additional secondary ignition pickup
  4. Cigar lighter power lead






See a complete matrix showing the items in each of the 4 kits

Return to top of page
