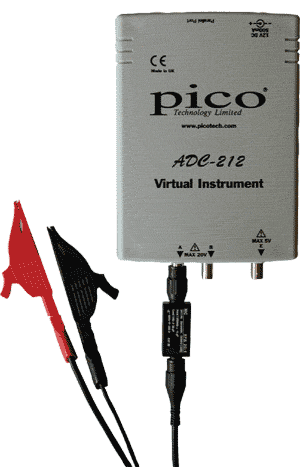

The TA010 is a passive 20:1 attenuator. This means that a 20V signal at its input will appear as a 1V signal on the output. As the signal is attenuated, the TA010 allows voltages higher than the -20V input range of the Pico oscilloscope to be measured (see the safety precautions below

The TA010, when used with Pico oscilloscopes provides increased input protection against overloads when working with inductive signals such as injectors and primary ignition. Under no circumstances attempt to use this attenuator to measure secondary ignition (HT) waveforms, the MI074 Secondary Ignition Pickup lead should be used for this purpose.

How to use the 20:1 Attenuator

PicoScope can be configured to work with a 20:1 attenuator probe by selecting first the Settings menu and the the Probes menu. Select 20:1 attenuation for the channel the TA010 is plugged into.

Safety Precautions

Fuel injector and primary ignition signals contain short duration high voltage spikes "inductive kicks". We therefore recommend the use of two ground connections between the oscilloscope and the vehicle under test. One ground connection is made using the measurement test lead. A second ground lead should be connected between one of the BNC connectors on the oscilloscope and a secure ground point on the vehicle such as the negative terminal of the battery. Misconfiguration and/or failure to follow these warnings may cause damage to the product and/or computer and could cause injury to yourself or others.
