Brochures and manualsWith the Mixmaster 12-channel automotive signal mixer you can view an ignition parade display of up to 12 cylinders on any lab scope.
Mixmaster can produce a parade display of up to 12 cylinders
using a single channel of your lab scope. If you have a
2-channel scope, then Mixmaster can also display 2 engine
banks separately with up to 6 cylinders per bank.
Mixmaster includes a trigger output, derived from one of the 12 input signals, which can be used to synchronise the scope to a known cylinder. Additionally, Mixmaster features a simple switch so you can invert a bank of signals to deal with negative-going signals on waste-spark systems.
Designed for use with the Automotive Oscilloscope Kit, Mixmaster can also be used on virtually any other lab scope, and can be used on both DIS and distributor ignition systems.

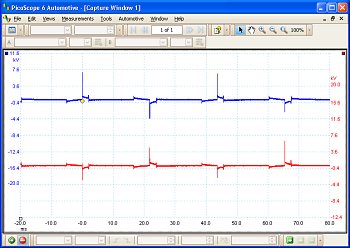

Ignition parade waveforms from a wasted spark ignition system
Mixmaster is battery powered and includes a low-battery indicator. The shockproof rubber case makes Mixmaster suitable for heavy-duty workshop use and incorporates a handy stand to make it easier to use.
Mixmaster is supplied with 3 BNC leads to connect to the oscilloscope, an engine-block ground lead, and a set of 4 short secondary ignition leads. Additional packs of secondary ignition leads can be purchased separately.
Mixmaster is a cost-effective way to display parade ignition waveforms on your lab scope. Compact and battery powered, it is ideal for mobile automotive diagnostics, and makes a valuable and inexpensive addition to your tool kit.
| Product | Mixmaster 12-Channel Ignition Signal Mixer |
|---|---|
| Analog bandwidth | 170 kHz |
| Bank A and B inputs |
12 x BNC female 91 kΩ resistance -2 V to +2 V (operating) -4 V to +4 V (absolute maximum) |
|
Oscilloscope
outputs Output level |
3 x BNC female -2 to +2 V |
|
Environment
limits: Operating temperature Operating humidity Storage temperature Storage humidity |
0 °C to 45 °C 5% to 80% RH, non-condensing -20 °C to +60 °C 5% to 95% RH, non-condensing |
| Power supply | 9 volt PP3 battery |
| Battery life | 48 hours approximately (power on, idle) |
| Dimensions |
221 x 115 x 58 mm (8.7 x 4.5 x 2.3 in) including rubber case |
Mixmaster secondary ignition pickup
Secondary Ignition Pickups
A pack of 4 secondary ignition pickups is available for use with Mixmaster. Each lead is approximately 40 cm / 15 in long. These leads do not include an earth clip. If required, the longer PP178 Secondary Ignition Pickup can also be used.
